Description
FOOD PROCESSING MACHINERY — UNITED KINGDOM

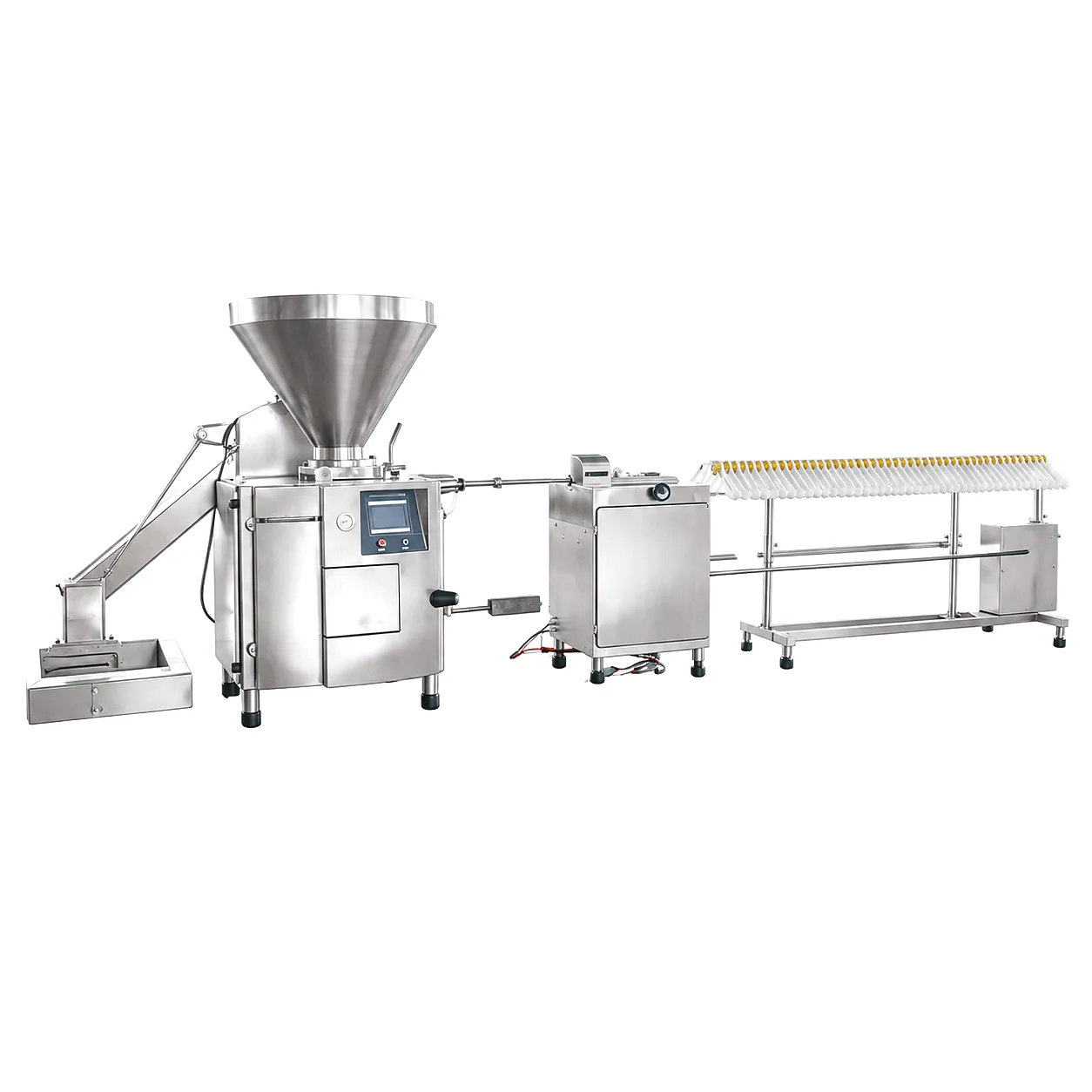

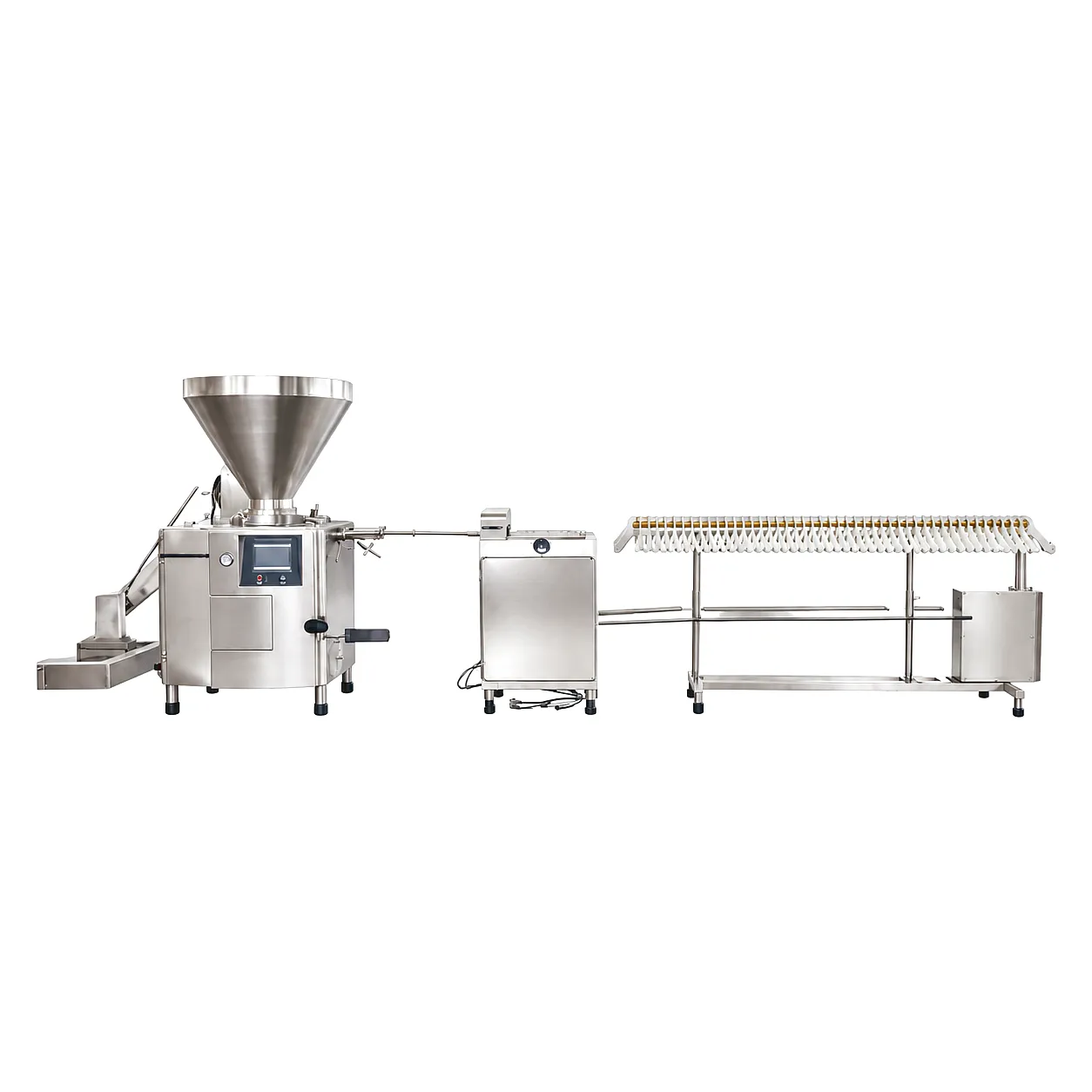

High-Speed Automatic Sausage String-Tying & Hanging Line
Engineered for continuous sausage processing operations — combining vacuum filling, precision portioning, automatic clip-and-hang into one compact production line trusted by butchers and food manufacturers across Britain.
The sausage industry in the United Kingdom operates under some of the most exacting hygiene, traceability and output standards in Europe. Whether you run a traditional butchery in Yorkshire, a mid-scale pork processor in the East Midlands, or a large ready-meal facility in Scotland, the pressure to deliver consistent weight, reliable casing integrity and rapid throughput is relentless. The High-Speed Automatic Sausage String-Tying & Hanging Line is designed specifically to answer that challenge — not with a collection of standalone machines bolted together, but with an integrated system where vacuum filling, precision portioning, automatic linking, twist-tying and rod-hanging operate as a seamless mechanical sequence.
At its core, the machine uses a YZG-6000 German-standard vacuum filling pump running at 0–600 portions per minute with stepless speed regulation, and a portion weight range of 5 g to 999,999 g with 1 g minimum adjustment accuracy. The body is built from SUS304 stainless steel with a specialist surface treatment that resists bacterial adhesion and tolerates daily pressure-wash routines — meeting BFFF hygiene codes without retrofit modification. All drive and electrical components are imported industrial grade, keeping downtime low in a sector where even thirty minutes of unplanned stoppage costs real money.
How the System Works
Meat enters the SUS304 stainless hopper — capacity 220 L — where the vacuum pump (German Busch standard) evacuates trapped air before the piston drive meters each portion through the filling nozzle. Air removal at this stage is critical: it prevents oxidation during subsequent smoking or curing, preserves natural colour, reduces bacterial load, and extends refrigerated shelf life without altering formulation. The YZG-6000 platform runs at speeds from 5 up to 999,999 portions depending on range set, then hands off directly to the clip-and-twist unit, which closes each link and advances the string onto the hanging rod trolley. The rod trolley — overall dimensions 2595 × 630 × 1041 mm, max single-side hanging length 520 mm — captures a full batch ready for the smokehouse or chilling tunnel with zero manual intervention between stations.
The CNC-machined core components maintain assembly quality to sub-millimetre tolerances across production batches. Because the entire line is compatible with double-clipping machines, UK processors can configure a fully automatic fill-and-clip operation: the sausage passes from nozzle to clip to hanger without touching a work surface. This matters practically in HACCP audit contexts, where manual transfer points are frequently flagged as contamination risk nodes.
Why UK Processors Choose This Line
SUS304 Hygienic Body
Special surface treatment resists corrosion, simplifies pressure-wash cleaning and satisfies BFFF / BRC hygiene requirements without secondary lining.
Precision Portioning
Dual vacuum measurement and filling accuracy deliver 1 g adjustment resolution across a 5–999,999 g range, protecting recipe consistency and reducing giveaway on every shift.
600 Portions / Min
Stepless 0–600 rpm speed regulation allows operators to match throughput to casing speed or smokehouse capacity without mechanical changeover.
German Busch Vacuum Pump
Standard-equipped Busch vacuum technology removes air before fill, cutting oxidation-related discolouration and extending product shelf life without additives.
Wear-Resistant Pump Core
Pump casing, impeller and vanes from premium imported materials with vacuum heat treatment. High-strength steel core components and German-quality oil seals keep the main shaft running reliably across multi-shift operation.
Filtered Cooling System
Internal filtration keeps the cooling circuit clean, reducing heat-related component wear and maintaining stable operating temperature across extended production runs.
Technical Specifications
Hanging Rod Trolley
Vacuum Sausage Filler
* Additional technical specification data will be added here. Custom voltage (e.g. 415V 50Hz UK standard) available on request.
Materials, Construction & Application Scenarios
🔧 Material Specification
The machine body is SUS304 stainless steel with a specialist surface treatment that combines easy cleaning with lasting visual finish. The pump system — casing, impeller, vanes — uses premium imported materials that are vacuum heat-treated for extended wear resistance and part interchangeability. The main shaft carries a German-quality oil seal and the high-precision transmission system ensures all mechanical components wear evenly.
🍔 Application Scenarios
Designed for pork, beef and poultry sausages in natural, collagen and synthetic casings. Suitable for linked fresh sausages, breakfast sausages, bratwurst-style products and cooked cured lines. Used in British artisan butcheries, contract meat processors, supermarket own-label manufacturers and smokehouse operations where consistent hanging geometry is required for uniform smoke penetration.
Customer Success: UK Pork Processor, West Yorkshire
Client: Regional sausage and cured meat producer, West Yorkshire, supplying three regional supermarket chains and a direct butchery network of 14 shops.
Challenge: Manual linking at 150–180 portions per minute with two operators was creating portion weight variance of up to 4.5 g per link on a 45 g product, causing consistent shortfall flags during third-party audit and generating excess giveaway estimated at £11,000 per year.
Solution: One High-Speed Automatic Sausage String-Tying & Hanging Line installed with 415V custom voltage supply and integrated rod trolley system sized for their Vemag smokehouse trolley format.
Outcome: Portion variance reduced to under 1 g per link. Throughput increased to 420 portions per minute with one operator. The annual giveaway saving covered approximately 65% of the machine’s cost in the first twelve months of operation, with BRC Grade A maintained through the subsequent audit cycle.
“We were losing money on giveaway for years and didn’t have the numbers to prove it. Once the line was running, the 1 g accuracy changed our whole production economics. BRC audit was straightforward.”
— Production Manager, West Yorkshire Pork Processor
“The hanging rod trolley fits directly into our smokehouse format. No manual transfer, no cross-contamination risk. Our hygiene scores went up by three points on the next internal review.”
— Head of Operations, Scottish Smoked Meats Facility
“We produce five different sausage SKUs on the same line. Changeover between products takes about eight minutes. Throughput at 400 portions a minute is consistent. We haven’t had a pump failure in 14 months.”
— Technical Director, East Midlands Contract Processor
Manufacturing & Custom Engineering
The facility operates CNC machining centres, dedicated vacuum heat treatment equipment and precision assembly lines for the pump core components. Standard configurations are built to documented quality control protocols, with inspection records available at point of delivery. For UK buyers whose production specifications fall outside the standard range — different trolley formats, alternative voltage configurations (415V 50Hz is commonly supplied for the British market), custom hopper volumes, or integration with existing casing feed equipment — the engineering team provides full bespoke configuration support. Customisation lead time is typically discussed at order confirmation and confirmed before manufacturing begins.
We have completed third-party supplier audit and company verification supported by SGS / TÜV Rheinland. This verification helps buyers review company identity, business operations, supplier profile and general manufacturing capability. Product-specific inspection reports, material documents or compliance records can be provided according to order requirements.
MOQ & Trade Terms
MOQ: Standard parts with quantity MOQ; high-value/large items by order value. New-client samples (1–5 pcs) at sample price. Combine multiple models for USD 1,500. Special materials/processes follow process MOQ. 1–2-piece retail orders are not accepted.
Trade Terms: FOB / CIF / DDP / EXW available. Lead time confirmed at order. Consult us for UK delivery and installation coordination.
Supplying British Sausage Manufacturers
The United Kingdom’s sausage market remains one of the largest per-capita in Europe, with the British Sausage Appreciation Society estimating annual consumption in the hundreds of millions of kilograms. From Cumberland links in the Lake District to Lincolnshire varieties and Welsh glamorgan-style products, the regional diversity of the British sausage trade means processors face an unusually wide range of portion sizes, casing formats and production run lengths. The High-Speed Automatic Sausage String-Tying & Hanging Line addresses this variety directly through its stepless speed regulation, its wide portion range, and its compatibility with natural, collagen and synthetic casings — making it equally suited to a craft butcher in Norfolk running 200 kg/day and a contract processor in Lancashire running 2,000 kg per shift.
For facilities supplying UK retail chains, BRC Food Safety Standard compliance is non-negotiable. The SUS304 construction, vacuum air removal and sealed pump housing all contribute to meeting the hygiene and contamination control requirements that underpin a BRC Grade A rating. Traceability requirements can be supported by optional portion weight data logging, available as a configuration on the high-speed controller. Processors supplying foodservice or export markets will find that the combination of consistent portioning and automated hanging geometry also supports EU/US export documentation for weight-per-unit declarations.
Frequently Asked Questions
Ready to upgrade your sausage production line? Our engineering team is available to discuss your UK facility requirements.
Get a Quote — [email protected]
SGS / TÜV Rheinland Verified Supplier | FOB · CIF · DDP · EXW | Custom UK Voltage Available
